Features

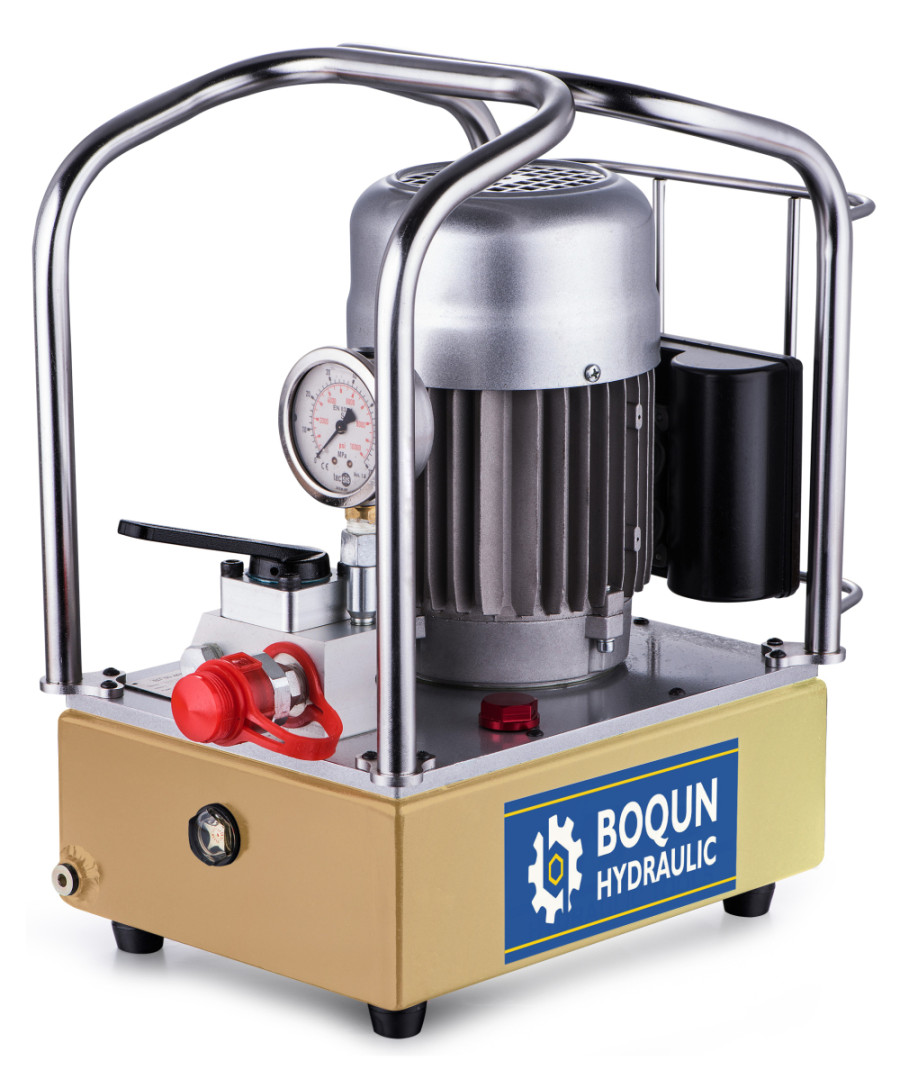

1.Electric pump motor with light weight aluminum housing, and integrated heat sink for easy cooling.
2.lwo-speed design reduces cycle times for improved productivity.
3.Built-in safety valve to prevent overloading
4.Externally adjustable relief valve allows control of operating pressure without opening the pump
5.Oil tank cooler is optional, it could support pump long duration Sustained working.
6. Different flow control valve is avalilable to fit sepcial working requiement.
7. Compact, lightweight and durable aluminium frame protect the pump.
8.Suited to power medium size (double-acting & single-acting) cylinders or hydraulic tools.
9.Protection circuit is designed.
| Model No. | Oil Flow (L/min) | Pressure (bar) | Power (KW) | Oil Capacity (L) | Input Power* | Weight(kg) | Dimensions（mm） | ||
| High Pressure | Low Pressure | High Pressure | Low Pressure | ||||||
| ZE4 | 0.22 | 3 | 700 | 40 | 0.37 | 4 | 110V-240V 1Ph 50HZ |
17 | 342*210*395 |
| 0.22 | 3 | 700 | 40 | 0.37 | 4 | 100-130V 1Ph 60HZ |
17 | 342*210*395 | |
| ZE10 | 1 | 6.3 | 700 | 70 | 1.5 | 20 | 220V-440V 3Ph 50HZ |
46 | 565*385*620 |
| 1 | 7.5 | 700 | 70 | 1.5 | 20 | 200V-480V 3Ph 60HZ |
46 | 565*385*620 | |
| ZE25 | 2.2 | 9.3 | 700 | 70 | 3 | 40 | 220V-440V 3Ph 50HZ |
66 | 605*525*790 |
| 2.2 | 8.6 | 700 | 70 | 3 | 40 | 200V-480V 3Ph 60HZ |
66 | 605*525*790 | |
